  • #15488
    Christian Eugster
    Participant

    Hi after looking for a solution to my problem, I found this line in th mini ultra pro v3 section:
    Data logging with Mini Ultra Pro Coming Soon
    so I have to ask here how I solve my problem: I tried with two sensors on the pins GND, 3V3, SDA, SCL to read sensor data without luck. Do you have a solution for this (what am I doing wrong)?

    /*******************************************************************************
     Mini Ultra Pro Sleep RTC Alarm
     Version: 0.10
     Date: 20-02-2017
     Company: Rocket Scream Electronics
     Author: Lim Phang Moh
     Website: www.rocketscream.com

     An example code demonstrating the ultra low sleep current capability of the
     Mini Ultra Pro while running the on-chip built-in RTC. Example puts the Mini
     Ultra Pro into standby mode (sleep) while RTC is allowed to run in the
     background. Alarm is set to wake the processor on the 15 s of a minute.
     This results in sleep period of 1 minute. The LED on pin 13 is set to toggle
     on every alarm match state. In sleep state with the built-in LED turn off,
     current measured is approximately 21.0 uA.

     Requirement:
     1. Mini Ultra Pro board powered by a single cell Li-Ion/Pol 3.7V battery.

     Important Note:
     1. Upon using the SerialFlash.sleep() function, the only function that the
     serial flash chip response to is SerialFlash.wakeup().

     Revision Description
     ======== ===========
     0.10 Initial public release.
    *******************************************************************************/

    #include <SerialFlash.h>
    #include <RTCZero.h>
    #include <SPI.h>
    #include <RH_RF95.h>
    #include <RHDatagram.h>
    #include <CayenneLPP.h>

    #define DEBUG

    #define SERVER_ADDR 1
    #define NODE_ADDR 32

    #define SENSOR_SI7021
    //#define SENSOR_SHT31

    #define RF_FREQUENCY 868.0

    #define Serial SerialUSB

    // ***** CONSTANTS *****
    const int radioDio0 = 2;
    const int flashChipSelect = 4;
    const int radioChipSelect = 5;

    // Choose correct on-board radio
    RH_RF95 radio(radioChipSelect, radioDio0);
    RHDatagram manager(radio, NODE_ADDR);
    RTCZero rtc;
    CayenneLPP lpp(51);
    #ifdef SENSOR_SI7021
    #include <Adafruit_Si7021.h>
    Adafruit_Si7021 si7021 = Adafruit_Si7021();
    #elif defined SENSOR_SHT31
    #include <Adafruit_SHT31.h>
    Adafruit_SHT31 sht31 = Adafruit_SHT31();
    #endif

    /* Change these values to set the current initial time */
    const byte seconds = 0;
    const byte minutes = 00;
    const byte hours = 10;

    /* Change these values to set the current initial date */
    const byte day = 20;
    const byte month = 2;
    const byte year = 17;

    // ***** VARIABLES *****
    #if defined SENSOR_SI7021 || defined SENSOR_SHT31
    float tmp;
    float hum;
    #endif

    bool match = false;
    unsigned char pinNumber;
    float bat;

    float readVoltage()
    {
      int adcReading = analogRead(A5);
      // Discard inaccurate 1st reading
      adcReading = 0;
      // Perform averaging
      for (unsigned char counter = 10; counter > 0; counter--)
      {
        adcReading += analogRead(A5);
      }
      adcReading = adcReading / 10;
      // Convert to volts and return value
      return adcReading * (4.3 / 1023.0);
    }

    void alarmMatch()
    {
      match = true;
    //#ifdef DEBUG
    //  Serial.println("Alarm callback");
    //#endif
    }

    #ifdef SENSOR_SI7021
    void init_si7021()
    {
    #ifdef DEBUG
      SerialUSB.print("Initializing sensor Si7021: ");
    #endif
      if (si7021.begin())
      {
    #ifdef DEBUG
        SerialUSB.println("OK");
    #endif
      }
      else
      {
    #ifdef DEBUG
        SerialUSB.println("Failed");
    #endif
      }
    }
    #endif

    #ifdef SENSOR_SHT31
    void init_sht31()
    {
    #ifdef DEBUG
      SerialUSB.print("Initializing sensor SHT31: ");
    #endif
      if (sht31.begin(0x44))
      {
    #ifdef DEBUG
        SerialUSB.println("OK");
    #endif
      }
      else
      {
    #ifdef DEBUG
        SerialUSB.println("Failed");
    #endif
      }
    }
    #endif

    #ifdef SENSOR_SI7021
    void read_si7021()
    {
      tmp = si7021.readTemperature();
      lpp.addTemperature(1, tmp);
    #ifdef DEBUG
      if (isnan(tmp))
        tmp = 20.0;
      SerialUSB.print("Temperature: ");
      SerialUSB.print(tmp);
      SerialUSB.println("ºC");
    #endif
      hum = si7021.readHumidity();
      lpp.addRelativeHumidity(2, hum);
    #ifdef DEBUG
      if (isnan(hum))
        hum = 50.0;
      SerialUSB.print("Humidity: ");
      SerialUSB.print(hum);
      SerialUSB.println("%");
    #endif
    }
    #endif

    #ifdef SENSOR_SHT31
    void read_sht31()
    {
      tmp = sht31.readTemperature();
      lpp.addTemperature(1, tmp);
    #ifdef DEBUG
      if (isnan(tmp))
        tmp = 20.0;
      SerialUSB.print("Temperature: ");
      SerialUSB.print(tmp);
      SerialUSB.println("ºC");
    #endif
      hum = sht31.readHumidity();
      lpp.addRelativeHumidity(2, hum);
    #ifdef DEBUG
      if (isnan(hum))
        hum = 50.0;
      SerialUSB.print("Humidity: ");
      SerialUSB.print(hum);
      SerialUSB.println("%");
    #endif
    }
    #endif

    void setup()
    {
    #ifdef DEBUG
      SerialUSB.begin(9600);
      delay(10000);
      SerialUSB.println("Started");

      SerialUSB.println("Initializing board");
    #endif
      // Switch unused pins as input and enabled built-in pullup
      for (pinNumber = 0; pinNumber < 23; pinNumber++)
      {
        pinMode(pinNumber, INPUT_PULLUP);
      }
      for (pinNumber = 32; pinNumber < 42; pinNumber++)
      {
        pinMode(pinNumber, INPUT_PULLUP);
      }
      pinMode(25, INPUT_PULLUP);
      pinMode(26, INPUT_PULLUP);

    #ifdef DEBUG
      SerialUSB.print("Initializing radio: ");
    #endif
      if (radio.init())
      {
    #ifdef DEBUG
        SerialUSB.println("OK");
    #endif
      }
      else
      {
    #ifdef DEBUG
        SerialUSB.println("Failed");
    #endif
      }
      radio.setFrequency(RF_FREQUENCY);
      radio.setModeTx();
      radio.setTxPower(14, false); // values between 5 to 23
      manager.setThisAddress(NODE_ADDR);
      manager.setHeaderFrom(NODE_ADDR);
      radio.sleep();

      SerialFlash.begin(flashChipSelect);
      SerialFlash.sleep();

    #ifdef DEBUG
      pinMode(LED_BUILTIN, OUTPUT);
      digitalWrite(LED_BUILTIN, LOW);
    #endif

      // ***** IMPORTANT DELAY FOR CODE UPLOAD BEFORE USB PORT DETACH DURING SLEEP *****
      delay(15000);

      //***** UNCOMMENT FOR MINI ULTRA PRO VERSION 0V30 & ABOVE IF PINS ARE CONNECTED TO RADIO ****
      pinMode(6, INPUT);
      pinMode(7, INPUT);
      digitalWrite(3, HIGH);
      pinMode(3, OUTPUT);
      digitalWrite(3, HIGH);
      //*****

    #if defined SENSOR_SI7021
      init_si7021();
    #elif defined SENSOR_SHT31
      init_sht31();
    #endif

    #ifdef DEBUG
      SerialUSB.println("Initializing clock");
    #endif
      // RTC initialization
      rtc.begin();
      rtc.setTime(hours, minutes, seconds);
      rtc.setDate(day, month, year);

      // RTC alarm setting on every 30 seconds, resulting in 1 minute sleep period
      rtc.setAlarmMinutes(1);
      rtc.enableAlarm(rtc.MATCH_SS);
      rtc.attachInterrupt(alarmMatch);
    #ifdef DEBUG
      SerialUSB.print("Alarm set to ");
      SerialUSB.print(rtc.getAlarmMinutes());
      SerialUSB.println(" minutes");
    #else
      USBDevice.detach();
    #endif
      rtc.standbyMode();
    }

    void loop()
    {
      if (match)
      {
        match = false;

    // Initialize USB and attach to host (not required if not in use)
    //#ifdef DEBUG
    //    USBDevice.init();
    //    USBDevice.attach();
    //
    //    digitalWrite(LED_BUILTIN, !digitalRead(LED_BUILTIN));
    //#else
    //    // Detach USB from host (not required if not in use)
    //    USBDevice.detach();
    //#endif

        lpp.reset();

    #if defined SENSOR_SI7021
        read_si7021();
    #elif defined SENSOR_SHT31
        read_sht31();
    #endif

    #ifdef DEBUG
        SerialUSB.print("Voltage: ");
    #endif
        bat = readVoltage();
        lpp.addVoltage(3, bat);
    #ifdef DEBUG
        SerialUSB.print(bat);
        SerialUSB.println("V");

        SerialUSB.print("Send radio packet: ");
        digitalWrite(LED_BUILTIN, HIGH);
    #endif
        radio.setModeTx();
        if (manager.sendto(lpp.getBuffer(), lpp.getSize(), SERVER_ADDR))
        {
    #ifdef DEBUG
          SerialUSB.println("OK");
    #endif
        }
        else
        {
    #ifdef DEBUG
          SerialUSB.println("Failed");
    #endif
        }
        radio.sleep();

    #ifdef DEBUG
        SerialUSB.println("Going to sleep");
        digitalWrite(LED_BUILTIN, LOW);
    #endif
        rtc.standbyMode();
      }
    }
    #15491
    LIM PHANG MOH
    Keymaster

    If you already put the MCU into standby mode, you have to do proper USB detach and attach back, else you won’t get the USB port working.

    Have you try the Si7021 bundled example to verify it works without any other section?
    That way we can isolate the issue.

    #15493
    Christian Eugster
    Participant

    I tried the example sketch provided by the adafruit si7021 example library. sensor.begin() returns false,

    #15495
    LIM PHANG MOH
    Keymaster

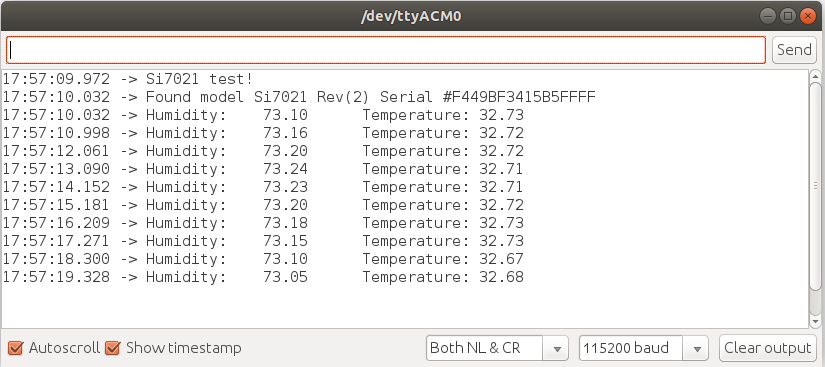

    I have tested with a Si7021 module using the library example. It does work as expected.
    Si7021 Test
    May I know which Si7021 module you are using and how are you wiring them up?

    Note: Do add #define Serial SerialUSB to use the USB port as debug port.

    #15498
    Christian Eugster
    Participant

    the breakout has no name. it looks like so:
    (Sorry, I am not able to upload an image). It is a small tiny breakout board with i2c interface.
    I tried it out with an Arduino mini pro and it works.

    #15501
    LIM PHANG MOH
    Keymaster

    How are you powering the board? Does the module has only 4-pin breakout (SDA, SCL, 3V3, GND) or it has the 5 pin type (has a VIN)?
    You can upload your images elsewhere and put the link here.

    #15502
    Christian Eugster
    Participant

    si7021 There are only four pins 3V3 GND SDA and SCL.

    #15505
    Christian Eugster
    Participant

    board

    #15506
    Christian Eugster
    Participant

    sensor

    #15507
    LIM PHANG MOH
    Keymaster

    You need to solder the header pin to the Mini Ultra, putting them in ad-hoc doesn’t guarantee you any proper contact.

    #15508
    Christian Eugster
    Participant

    That was it!? Thank you!
